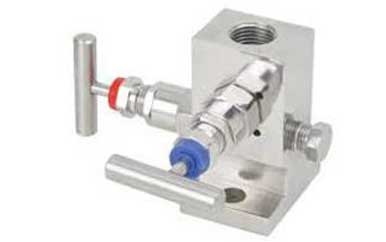

2 Valve Manifold-Pipe to Flange

Model : CEI-2-MV-T

CEIIPL 2 Valve Manifold Pipe to Flange Valve is designed in such a manner, which helps in connecting system impulse line & transmitters. Our range of manifold consist two valve configuration which allow for easy isolation, calibration, block and bleed for gauges, pressure switches and static pressure transmitting instrument.

Features:

  • Withstand high pressure and temperature
  • For a higher temperature graphite packing is used.
  • Reduce number of fittings and space required for installation.
  • Bonnet lock prevents accidents disassembly.
  • Compact Assembly Design Resulting in reduced size and weight.
  • Easy to install and maintain.

Technical Specification

  • Max. Pressure : 400bar / 6000psi
  • Max. Temperature : 240° C
  • Material : SS304/SS316, A105 SS304L/SS316L, Monel, Hastelloy, Inconel,
  • Gland Packing : PTFE, Graphite
  • Std. Process Connection : ½" NPT (F)
  • Std. Drain Connection : As per customer requirement
