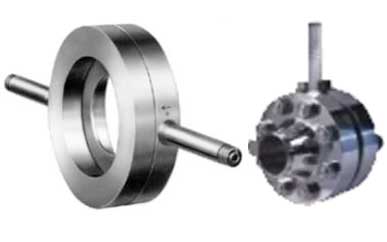

ORIFICE ASSEMBLY
OA
The plate holder assembly is a combination of plate holder and an orifice plate designed for ring tongue joint (RTJ) flange. The plate holder has a function of holding the orifice plate and also a function as a gasket to prevent leakage of the process fluid. The plate holder has a oval or octagonal ring for mounting between ring tongue joint flanges. The pressure tapping system normally is of the flange tap type. Orifice plate is screwed to the plate holder. Generally the plate holder is of soft iron material. The plate holder along with the orifice plate can be also machined from one piece. RTJ holder material is selected so that the RTJ holder is less than that of flange hardness.
Materials:
- Flanges: Carbon Steel, Low Temperature Carbon Steel, Chrome Moly Steels, Stainless Steel, Duplex, Super Duplex, 6 Mo, Monel, Hastelloy, Incolloy 825, PVC, PP, PVDF.
- Orifice Plate: Stainless Steel, Duplex, Super Duplex, Monel, Hastelloy, Inconel etc.
Technical Specification
- Size of PIPE & Schedule.
- Size of Flange/Type/Rating/Schedule/Standard.
- Gasket: CAF / SS Spiral Wound + CAF / PTFE / PVC / Rubber, Other materials as per special request.
- Stud / Nut: ASTM A193 Gr. B7/ASTM A194 Gr.2H, B7M/2HM, A193 B16/A194 Gr. 4
- Flanges: ANSI B-16.36/B16.5/AWWA/ASME B16.47/ IS 6392 / BS 10 etc.
- Orifice Plate Types: Square edge concentric, Quadrant edges, Conical entrance, Eccentric, segmental, Restriction.
- Pressure Tapping’s: Flange Taps / Corner Taps / Radius taps
