Fabricated (Screwed)

Model: TFAB(SC)

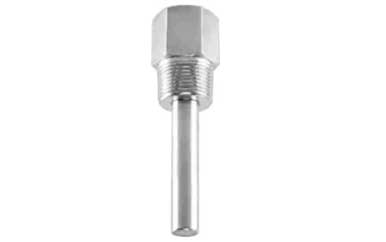

TThese Thermowells are fabricated from pipe with a welded end cap. These thermowells are installed directly into the process with the help of threaded process connection. Ideal for use in longer length tank & vessels where bar stock is a limitation.

Application

  • HVAC Industries, Utilities, Chemical plants, Pharmaceutical, Engineering Plants, On shore, ff shore & other similar process industries.

Technical Description:

  • Type : Straight
  • Material :SS316/SS304, SS304L/SS316L, Monel, Inconel, Hastelloy, Carbon Steel
  • Instrument Connection : 1/2" to 1" (NPT & BSP)
  • Process Connection : 1/2" to 1" (NPT&BSP)
  • Type of Head : Hex headed, Round headed with spanner slots
  • Extension : H50 (Standard)
  • Major Diameter : 1/4",3/4",3/8",1/2" (Sch 40 to 160)
  • Test & Certification : Dye Penetration Test, PMI Test, Chemical Composition Test.
