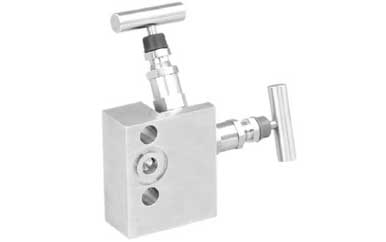

2 Valve Manifold Direct Mount

Model: CEI-2-MV-DM

With threaded horizontal port inlet with a Flange outlet instrument connection. A vent/test port on base. The venting bonnet is positioned on the left hand side and the isolating bonnet angular on the top.

Features:

  • Compact Assembly Design Resulting in reduced size and weight.
  • Easy to install and maintain.
  • Withstand high pressure and temperature
  • For a higher temperature graphite packing is used.

Technical Specification

  • Max. Pressure : 400bar / 6000psi
  • Max. Temperature : 240° C
  • Material : SS304/SS316, A105 SS304L/SS316L, Monel, Hastelloy, Inconel,
  • Gland Packing : PTFE, Graphite
  • Std. Process Connection : ½" NPT (F)
  • Std. Drain Connection : As per customer requirement

Product
2MV-DM

Process side
½” NPT F

Instrument Side
Flange

Vent/Test
¼”NPT F
